T & S Brass 5EF-2D-DS 4″ Deck Mount Lavatory Faucet

Weight 8 lbs
Dimensions 13 × 8.5 × 6 in

chat iconWHAT OUR CUSTOMERS SAY…

“This place rocks! I have replaced two parts for an old Gerber faucet in the laundry tub. After the spout was leaking, I could not find the right washers anywhere. I had to replace the whole spout, which they had in stock, and it was priced competitively. Now, not a drop leaks. ”
-John D.
02/03/2024

$287.41



T&S Brass and Bronze Works, Inc. is a leading manufacturer of faucets, fittings and specialty products and accessories for the foodservice, industrial, commercial plumbing and laboratory markets

We can ship anywhere the US Postal Service ships. For orders being shipped outside the US, please contact us at (888) ASK-NOEL, noelsplumbingsupply@fuse.net, or via the text widget on this screen.

SKU: 71952 Categories: , Tag:

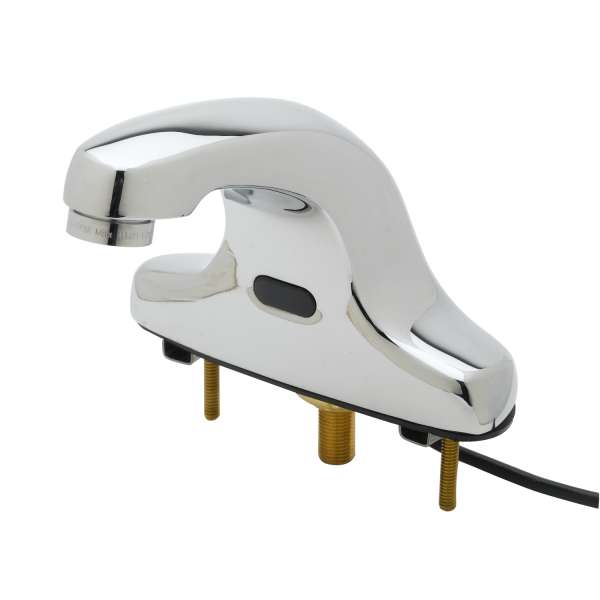

T & S Brass 4″ Deck Mount Sensor Faucet 5″ Cast Spout Mixing Tee & AC/DC Control Module



5EF-2D-DS



4″ deck mount electronic sensor faucet with polished chrome plated brass body with integral spout, 2.2 GPM vandal resistant aerator, AC/DC control module, temperature control mixing valve with check valves and 18″ flexible stainless steel supply hoses with 3/8″ compression connections. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372 and UL 1951. Meets ADA ANSI/ICC A117.1 requirements



  • Pressure: 20 – 125 psi (1.38 bar – 8.62 bar)
  • Temperature: 40 F – 140 F (4.44℃ – 60℃)
  • Water Consumption: @ 10 sec = .37 gal
  • 2.20 GPM @ 60 psi (8.33 L/min @ 4.14 bar)
  • 4″ deck mount faucet w/ polished chrome plated brass body with integral spout
  • 2.2 GPM vandal resistant aerator, Series 9 (B-0199-09)
  • Water resistant control module
  • Plug in AC transformer or (4) AA battery (DC) power options
  • Temperature control mixing valve w/ check valves
  • 18″ flexible stainless steel supply hoses w/ 3/8″ compression connections
  • Low battery LED indicator light
  • Material: Polished chrome plated brass body



Related documents



5EF-2D-DS Parts Breakdown

Common questions about ,

Is this item the original manufacturer's recommended replacement part? chevron-icon

Yes, this is the OEM recommended part.

Common questions about this product

Is this item the original manufacturer's recommended replacement part? chevron-icon

Yes, this is the OEM recommended part.

Is this the correct item for my application? chevron-icon

If you’re not sure text us a picture 1-888-275-6635 or email us a picture at noelsplumbingsupply@fuse.net.



We will make sure you have the right part.
