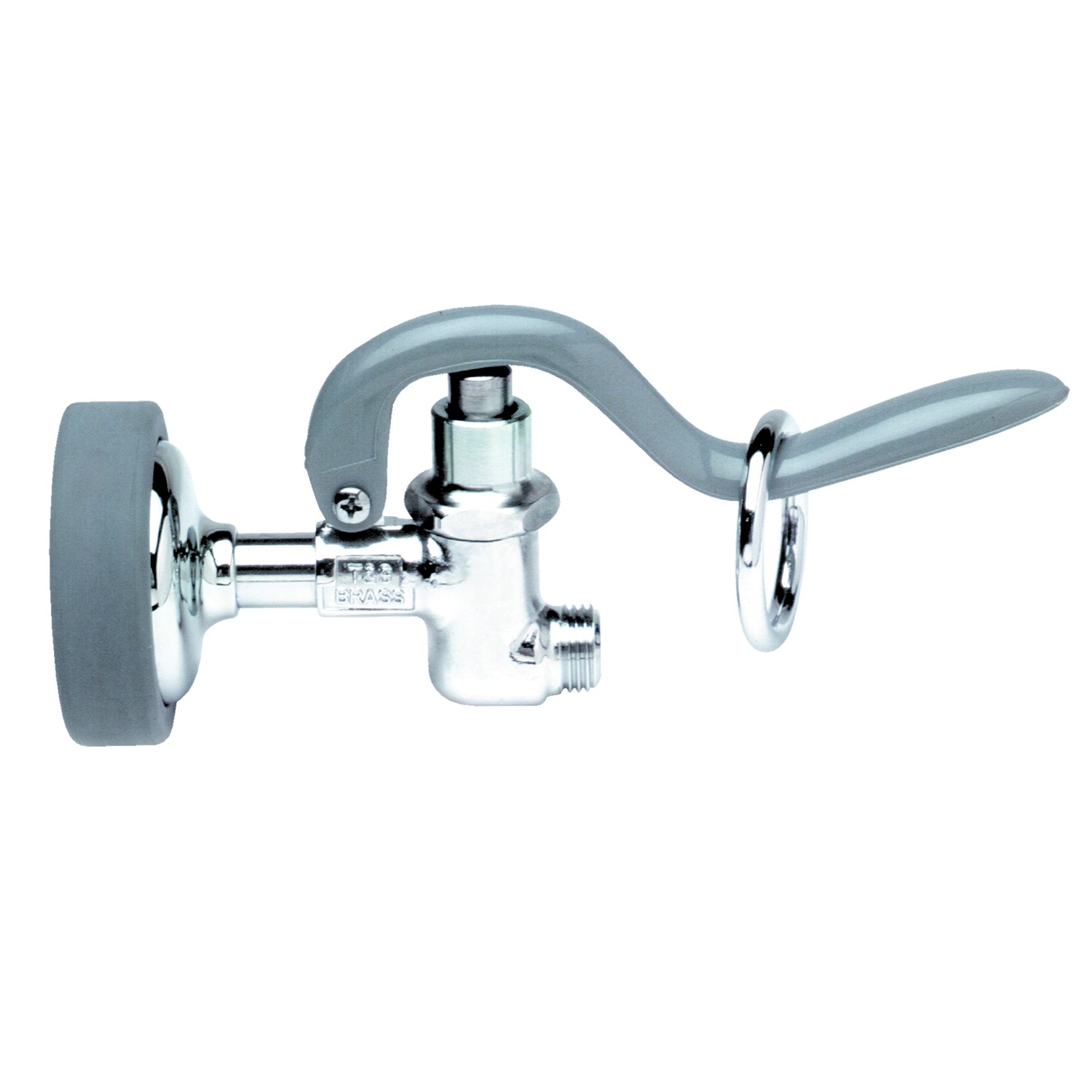

T&S Brass Spray Valve with Gray Rubber Bumper & DOE Spray Face B-0107

1.15 GPM spray valve, polished chrome plated brass body with rubber bumper and 3/4-14 UN male inlet. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. 2019 DOE PRSV – Class II compliant.

We can ship anywhere the US Postal Service ships. For orders being shipped outside the US, please contact us at (888) ASK-NOEL, noelsplumbingsupply@fuse.net, or via the text widget on this screen.

SKU: 14943 Category: Tag:

T&S Brass Spray Valve with Gray Rubber Bumper & DOE Spray Face



B-0107



  • Pressure: 20 – 125 psi (1.38 bar – 8.62 bar)
  • Temperature: 40 F – 140 F (4.44℃ – 60℃)
  • Spray Force: 7.5 Ozf (212 Gramf) @ 60 psi (4.14 bar)
  • 1.15 GPM @ 60 psi (4.35 L/min @ 4.14 bar)
  • Designed for heavy-duty use in industrial kitchens
  • 1.15 GPM spray valve
  • Shuts off when handle is released
  • Hold down ring
  • 3/4-14 UN male inlet fitting
  • Material: Polished chrome plated brass body and rubber bumper
  • NSF/ANSI 61
  • ASME A112.18.1 / CSA B125.1
  • EPAct2005 (Public Law 109-58)
  • Low Lead Content (0.25% Max)
  • City of Los Angeles
  • Commonwealth of Massachusetts
  • BAA/ARRA
  • ASTM F2324
  • NSF/ANSI 372 (Lead Content)
  • California Energy Commission CEC-400 (Plumbing)
  • 2019 DOE PRSV-CLASS II



UPC: 671262000741



Related Documents



B-0107



B-0107 Parts Breakdown

Common questions about

Is this item the original manufacturer's recommended replacement part? chevron-icon

Yes, this is the OEM recommended part.
