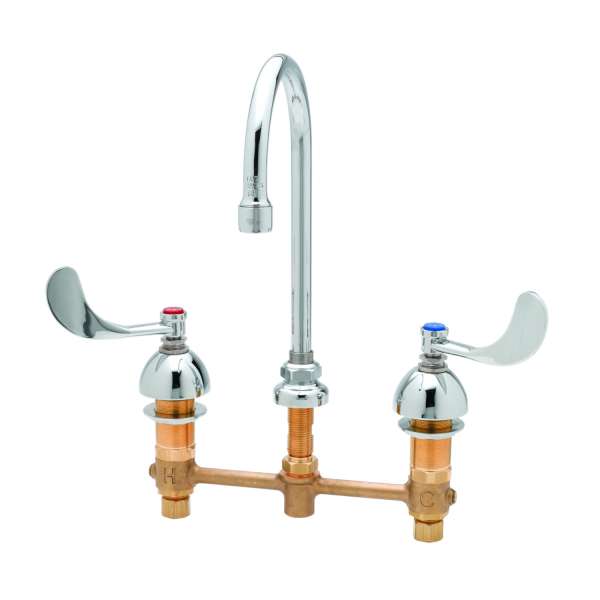

T & S Brass B-2866-05 Deck Mounted Medical Faucet 8″ Centers Swivel/Rigid Gooseneck Spout

Weight 7 lbs
Dimensions 3 × 2.5 × 2 in

chat iconWHAT OUR CUSTOMERS SAY…

“We were looking for a cartridge that not only matched the bottom holes but that would have the splines & you knew our cartridge had an additional piece which would not have spines on the new replacement We received the replacement cartridge yesterday; we replaced the old today & happy to say it fits perfect. Thank you for your great information and the speedy shipping. Should we need other supplies in the future, we will certainly contact your business. ”
-Leah l.
01/26/2023

$258.34



T & S Brass Deck Mounted Medical Faucet 8″ Centers Swivel/Rigid Gooseneck Spout Non Splash Aerator 4″ Wrist Blade Handles 8″ concealed deck mount mixing faucet with forged brass body, 5 3/4″ swivel/rigid gooseneck with 2.2 GPM aerator, compression cartridges with spring checks, 4″ wrist action handles, chrome plated escutcheons and 1/2″ NPT male inlets with coupling nuts. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.

We can ship anywhere the US Postal Service ships. For orders being shipped outside the US, please contact us at (888) ASK-NOEL, noelsplumbingsupply@fuse.net, or via the text widget on this screen.

SKU: 9286605 Category: Tag:

T & S Brass Deck Mounted Medical Faucet 8′ Centers Swivel/Rigid Gooseneck Spout Non Splash Aerator 4′ Wrist Blade Handles



B-2866-05



  • Pressure: 20 – 125 psi (1.38 bar – 8.62 bar)
  • Temperature: 40 F – 140 F (4.44℃ – 60℃)
  • 2.20 GPM @ 60 psi (8.33 L/min @ 4.14 bar)
  • 8′ EasyInstall concealed deck mount mixing faucet w/ forged brass body
  • 5 3/4′ swivel gooseneck with swivel-to-rigid washer to convert swivel gooseneck to rigid.
  • 2.2 GPM aerator, Series 1 (B-0199-01)
  • 4′ wrist action handles w/ color coded indexes
  • Eterna compression cartridges
  • 1/2′ NPSM male inlets w/ coupling nuts
  • Material: Forged brass body, polished chrome plated escutcheons, chrome plated metal handles & polished chrome plated brass escutcheons and tubular spout



UPC: 671262252485



Product specifications



B-2866-05.pdf



Common questions about

Is this item the original manufacturer's recommended replacement part? chevron-icon

Yes, this is the OEM recommended part.
